SPRING 4차시 - AOP, TRANSACTION, FILE UP/DOWN

relationships - JDBC -> Mybatis, JPA, Hibernate

Spring - DB와 연결해주는 역할, 템플릿툴을 제공



--DB Setting

<!-- DB Setting -->

         <bean id="sqlSessionTemplate" class="org.mybatis.spring.SqlSessionTemplate">

                 <constructor-arg name="sqlSessionFactory" ref="sqlSessionFactory"/>

         </bean>



         <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">

                 <property name="dataSource" ref="dataSource"/>

                 <property name="configLocation" value="/WEB-INF/mybatis-config.xml"/>

         </bean>



         <bean id="dataSource" class="org.springframework.jndi.JndiObjectFactoryBean">

                 <property name="jndiName" value="jdbc/oracle"/>

                 <property name="resourceRef" value="true"/>

         </bean>

bean객체 -> spring container에 위치

ref = 객체, value = 문자열 전달(경로)

mybatis-config.xml, DAO 없어짐 이후로

데이터액세스오브젝트(DAO) : 템플릿을 필요로 함

DAO에서 sqlSessionTemplate 사용(Dependency Injection방법으로 호출하면 container에서 객체 자동생성)

private SqlSessionTemplate sqlTemplate;







view - tiles(template)

view-module-template : layout template만 수정하면 됨 - 일관성있게 유지보수가능

web-inf - tiles2def.xml

<tiles-definitions>

         <definition name="base_layout" template="/view/module/template.jsp">

                 <put-attribute name="logo" value="/view/module/logo.jsp"/>

                 <put-attribute name="header" value="/view/module/header.jsp"/>

                 <put-attribute name="footer" value="/view/module/footer.jsp"/>

         </definition>



         <definition name="insert_form" extends="base_layout">

                 <put-attribute name="body" value="/view/insert_form.jsp"/>

         </definition>

         <definition name="list" extends="base_layout">

                 <put-attribute name="body" value="/view/list.jsp"/>

         </definition>



         <definition name="detail" extends="base_layout">

                 <put-attribute name="body" value="/view/detail.jsp"/>

         </definition>

</tiles-definitions>





모든 definition은 container가 알고있어야 한다



<!-- Tiles Setting -->

         <bean id="tilesConfigurer" class="org.springframework.web.servlet.view.tiles3.TilesConfigurer">

                 <property name="definitions">

                          <list>

                                  <value>/WEB-INF/tiles2def.xml</value>

                          </list>

                 </property>

         </bean>



         <bean id="viewResolver2" class="org.springframework.web.servlet.view.UrlBasedViewResolver">

                 <property name="viewClass" value="org.springframework.web.servlet.view.tiles3.TilesView"/>

                 <property name="order" value="1"/>

         </bean>





<!-- /view/hello.jsp -->

         <bean id="viewResolver" class="org.springframework.web.servlet.view.InternalResourceViewResolver">

                 <property name="prefix" value="/view/"/>

                 <property name="suffix" value=".jsp"/>

                 <property name="order" value="2"/>

         </bean>

-->internalresuource는 null값을 return할 수 없기 때문에 하위우선순위가 됨







--파일업로드



라이브러리추가

입력폼에서 encytype=multipart추가

파일 입력 input추가

board객체에 multipartfile 추가, get, set method 추가

xml에서

<!-- File UP/Down Setting -->



         <bean id="multipartResolver" class="org.springframework.web.multipart.commons.CommonsMultipartResolver">

                 <property name="defaultEncoding" value="UTF-8"/>

         </bean>

BoardController에서



private String uploadDir = "C:/Upload/File";



@RequestMapping(value="/board_insert", method=RequestMethod.POST)

         public String board_insert(@ModelAttribute("boardCommand") @Valid Board board, BindingResult errors){

                 if(errors.hasErrors()){

                          System.out.println("에러발생");

                          return "insert_form";

                 }



                 MultipartFile multipartFile = board.getUploadFile();

                 if(multipartFile != null){

                          String filename = multipartFile.getOriginalFilename();

                          board.setFname(filename);



                          try {

                                  multipartFile.transferTo(new File(uploadDir, filename));//파일업로드 수행

                          } catch (Exception e) {

                                  e.printStackTrace();

                          }

                 }



                 dao.insert(board);



                 return "redirect:board_list";

         }



board.xml

<insert id="insertBoard" parameterType="Board">

                 insert into board values(board_seq.nextval, #{title}, #{writer},

                 #{contents}, sysdate, 0, #{fname})

 </insert>







--파일다운로드



--detail.jsp

<li><a href="board_download?filename=${board.fname }">${board.fname }</a></li>

--board.controller

@RequestMapping("/board_download")

         public String board_download(@RequestParam("filename") String filename, Model model)throws Exception{

                 File file = new File(uploadDir, filename);

                 model.addAttribute("downloadFile", file);



                 return "downloadView";

         }

--servlet

<bean id="downloadView" class="kosta.view.DownloadView"/>



**새로운 뷰를 만들었기 때문에 새로 생성해줘야 함.

<bean id="viewResolver" class="org.springframework.web.servlet.view.BeanNameViewResolver">

                 <property name="order" value="1"/>

         </bean>





--json(ajax)

-client(ajax) => server(RestController-view필요없고 data만 전달)에 요청

-server(json으로 데이터 전달) -> jsp가 값을 받아서 화면에 표시

-json controller : view만들어줄 필요없이 json으로 다루기 가능



[

{"이름" : 홍길동,

"주소": 가산

},

{}

]



BoardController -> client.jsp -> JsonController

@RequestMapping("json_index")

         public String json_index(){

                 return "client";

         }





$(function(){

                 $.getJSON("spring_json", function(data){

                          //var data = responseData.list;

                          //alert(data);

                          $.each(data, function(index, member){

                                  $('#result').append('<tr><td>' + member.name + '</td>'

                                                   + '<td>' + member.address + '</td></tr>');

                          });

                 });

         });

@RestController

public class JsonController {

         @RequestMapping("/spring_json")

         public List<Member> spring_json(){

                 List<Member> list = new ArrayList<>();

                 list.add(new Member("홍길동","가산"));

                 list.add(new Member("박길동","강남"));



                 return list;

         }

}



**ajax요청 -> jsonController 임의의 객체 list를 return해보기

json코드를 html로 표현하기

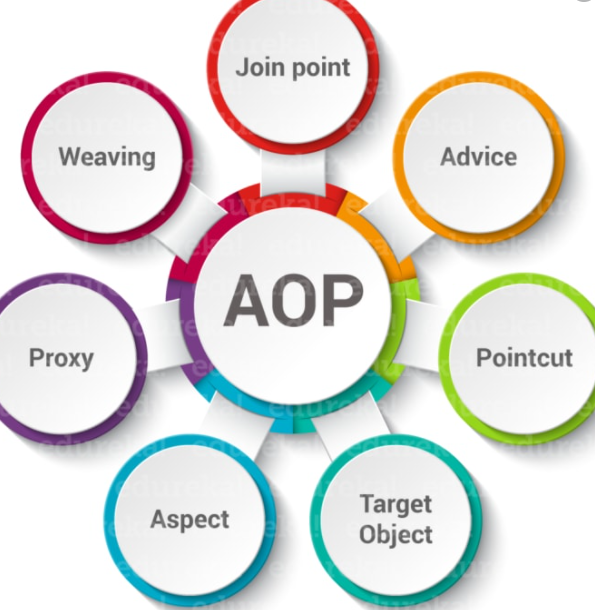

--AOP(Aspect Oriented Programming)

• Aspect(공통 관심사항)

• JointPoint

• Pointcut

• Advice

• Weaving

POJO Class를 이용한 AOP구현

스프링 api를 이용한 AOP구현



**Annotation을 이용한 AOP 구현

AOP는 설계단계에서부터 합의된대로 만들어야 한다.

원래 호출하고 싶은 메소드가 공통관심사 -> 중복되니까 AOP로 작성 -> 확장이 용이



--SessionAspect.java

@Aspect //공통관심사

public class SessionAspect {

         @Around("execution(public * kosta.controller.*.*do(..))")

         public String sessionCheck(ProceedingJoinPoint joinPoint) throws Throwable{

                 Object[] obj = joinPoint.getArgs();



                 HttpServletRequest request = (HttpServletRequest)obj[0];

                 HttpSession session = request.getSession();



                 String name = (String)session.getAttribute("name");

                 String view = "session/session_fail"; //실패했을때의 뷰는 항상 같기때문에 하나로 정해줌



                 try {

                          if(name == null){

                                  throw new Exception("no Session");//예외 발생

                          }

                          view = (String)joinPoint.proceed(); //session_do() 호출, Object->string으로 형변환

                 } catch (Exception e) {

                          return view;//fail

                 }

                 return view;//success

         }

}



-SessionController

@Controller

public class SessionController {

         @RequestMapping("/session_req")

         public String session_req(){

                 return "session/session_req";

         }



         @RequestMapping("/session_do")

         public String session_do(HttpServletRequest request){

                 return "session/session_success";

         }



         @RequestMapping("/session_add")

         public String session_add(){

                 return "session/session_add";

         }







}





--TRANSACTION

**Annotation을 이용한 transaction

 구현

--OrderService

@Service

public class OrderService {

         private OrderDao orderDao;

         private ItemDao itemDao;



         @Autowired

         public void setOrderDao(OrderDao orderDao) {

                 this.orderDao = orderDao;

         }

         @Autowired

         public void setItemDao(ItemDao itemDao) {

                 this.itemDao = itemDao;

         }



         @Transactional(propagation=Propagation.REQUIRED, rollbackFor={Exception.class})//예외발생시 롤백진행

         public void orderAction(Order order) throws Exception{

                 orderDao.addOrder(order);



                 if(itemDao.findItem(order.getNo()).getAmount()<order.getAmount()){//재고수량<주문수량

                          throw new Exception("재고가 부족합니다."); //재고가 없을 시 주문도 자동취소되도록 한묶음으로 트랜잭션 처리

                 }

                 itemDao.updateItem(order);

         }



}

--OrderController

@Controller

public class OrderController {

         private OrderService service;

         @Autowired

         public void setService(OrderService service) {

                 this.service = service;

         }



         @RequestMapping("/orderForm")

         public String orderForm(){

                 return "transaction/orderForm";

         }



         @RequestMapping("/order")

         public String order(Order order){

                 String view = "transaction/orderOk";



                 try {

                          service.orderAction(order);

                 } catch (Exception e) {

                          System.out.println("재고가 부족합니다");

                          view = "transaction/orderForm";

                 }

                 return view;

         }

}
